Ethernet converter with dedicated port power control, real-time power monitoring, and seamless RS-485/RS-232 integration.
We offer open-source APIs for our devices, empowering developers by simplifying integration, accelerating development, improving functionality, and enhancing compatibility. This strategic move not only boosts developer satisfaction and productivity but also strengthens our market position and drives innovation.
Echologger APIs
Introducing the Echologger TU-E2S Ethernet Converter
Transform your serial devices into network-ready systems instantly with the Echologger TU-E2S, our Ethernet converter. This compact PCB module bridges the gap between traditional serial interfaces and modern IP-based Ethernet LANs, making it an essential tool for seamless connectivity.

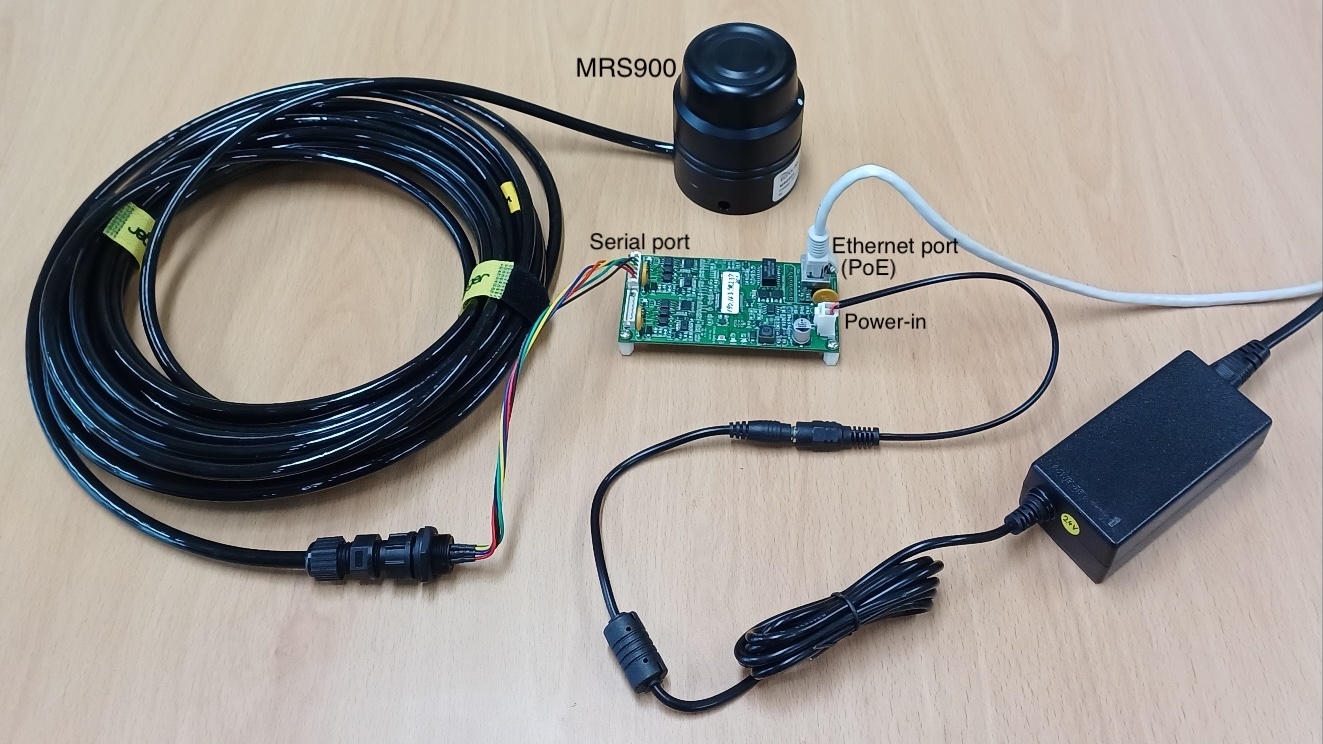

Ideal for integrating devices such as echosounders or scanning sonars with a serial interface, the Echologger TU-E2S ensures reliable and efficient communication across your network. Its compact size and robust performance make it the perfect solution for demanding environments where space is at a premium.
With the Echologger TU-E2S, upgrading to network-ready functionality is as simple as plug-and-play. Explore the future of connectivity with this versatile and innovative module.
Features
- Dedicated Power Control: Individual power switches for each port, controllable via commands.
- Power Monitoring: Real-time monitoring of power consumption for connected devices.
- Dual Serial Ports: RS-485/RS-232 compatibility with Virtual COM Port and TCP Server modes.
- Ethernet Connectivity: 10/100BaseT(X), PoE (IEEE 802.3af), 1.5kV isolation protection.

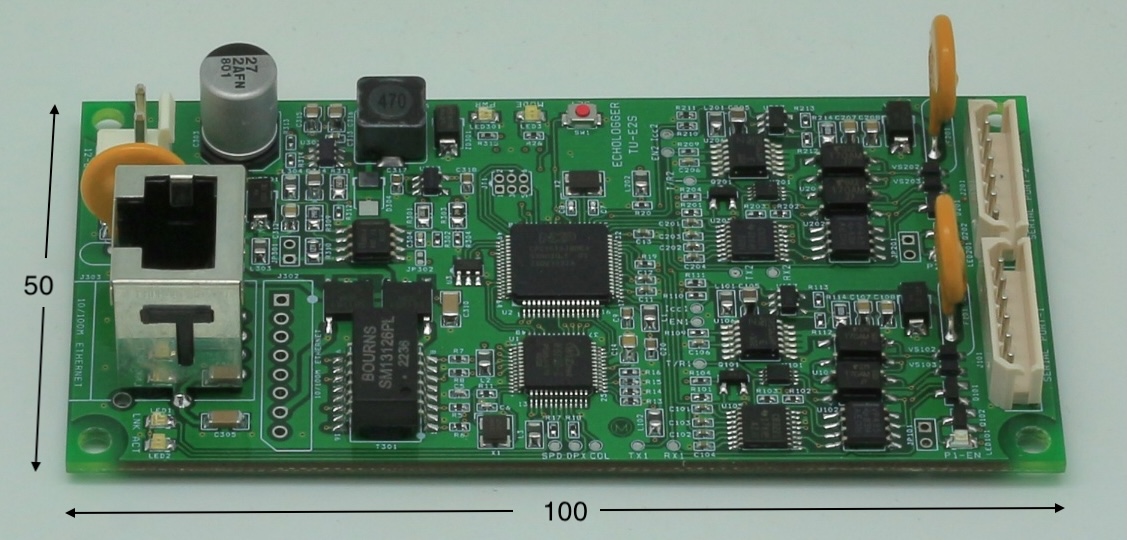

- Compact Design: 100 x 50 x 18.5 mm, 34 g.
Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 or Molex 5267-08) | 1 |
| PoE Standard | IEEE 802.3af |
Software Features
| Configuration Options | Terminal Console |
| Management | DHCP Client ARP IPv4 TCP/IP |
| Windows Virtual COM Drivers | HHD Software Virtual Serial Port Tool Windows 11 Windows 10 Windows 8.1 Windows 8 Windows 7 Windows Vista Windows Server 2022 Windows Server 2019 Windows Server 2016 Windows Server 2012 R2 Windows Server 2012 Windows Server 2008 R2 Windows Server 2008 |
Serial Interface
| Connector | MOLEX 5267-06 |
| Number of Ports | 2 |
| Serial Standard | RS-485/RS-232 |
| Operation Modes | Virtual COM Port TCP Server |
| Baudrate | 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600 |
| Data Bits | 8 |
| Stop Bits | 1 |
| Parity | None |
| Flow Control | None |
Serial Signal
| RS-232 | Rx, Tx, GND |
| RS-485 | A, B, GND |
Power Parameters
| Input Voltage | 12-60V DC |
| No. of Power Inputs | 1 |
| Power Over Ethernet | Yes |
Physical Characteristics
| Dimensions | 100 x 50 x 20 mm |
| Weight | 34 g |
